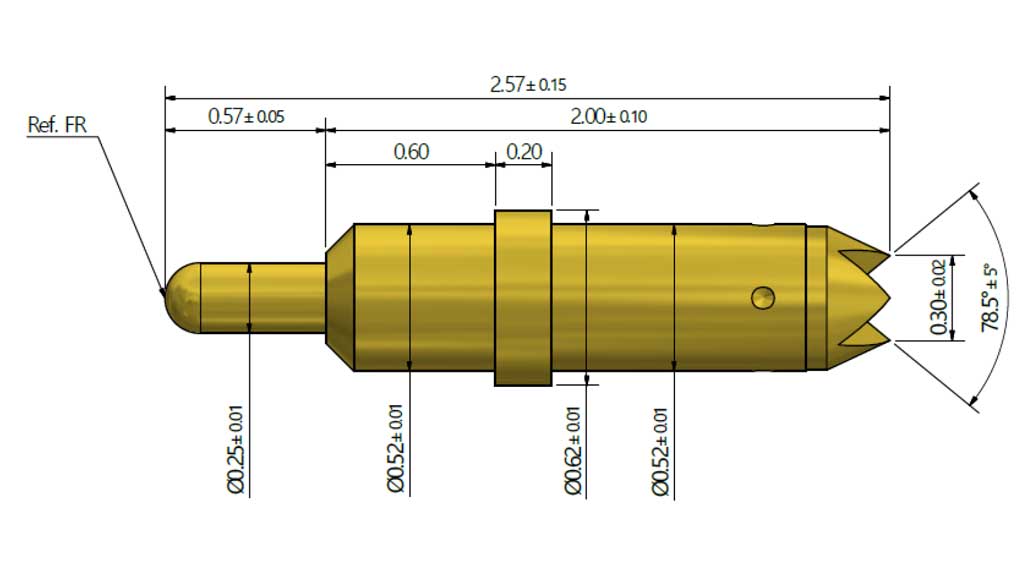

双头单动探针 / Single Pin

GS052L0257AMR

 Mechanical
Spring Force
Initial Force: 7.50gf
Recommended Stroke: 34.70gf @ 0.45mm
Full Stroke: 40.70gf @ 0.55mm

 Material
Top Plunger – Hardened BeCu (Au Plated)
Bottom Plunger – Hardened BeCu (Au Plated)
Barrel – PBT (Au Plated)
Spring – Music Wire (Au Plated)

 Electrical Spec.
Resistance: Max 50mΩ
Current Rating: 1.0A
