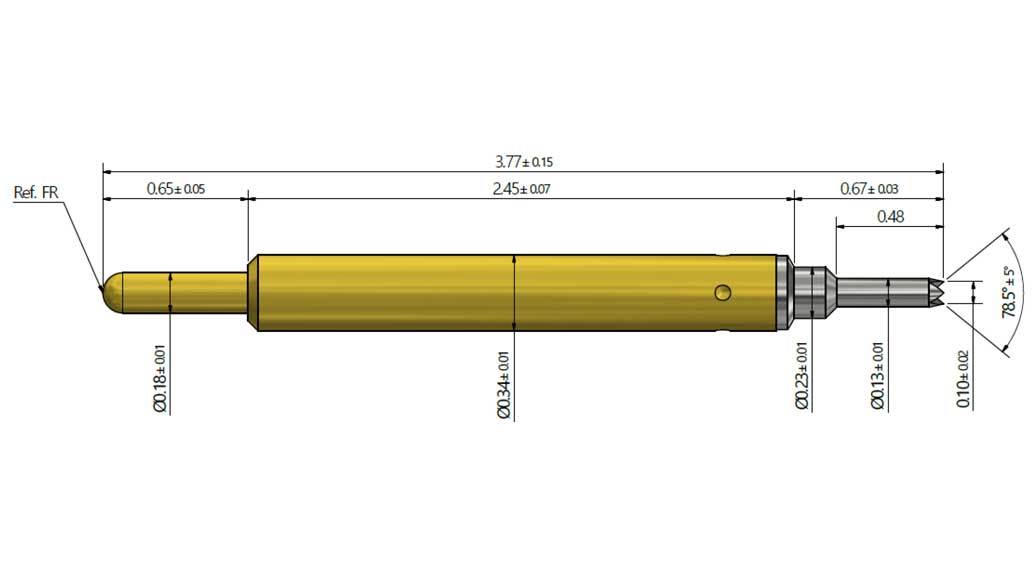

双头单动探针 / Single Pin

GS034L0377AMR_Pi

 Mechanical
Spring Force
Initial Force: 3.60gf
Recommended Stroke: 32.00gf @ 0.44mm
Full Stroke: 39.30gf @ 0.55mm

 Material
Top Plunger -H-Pd Alloy + G1 Coating
Bottom Plunger – Hardened BeCu (Au Plated)
Barrel – PBT (Au Plated)
Spring – Stainless Steel Wire (Au Plated)

 Electrical Spec.
Resistance: Max 100mΩ
Current Rating: 3.5A
