双头单动探针 / Single Pin

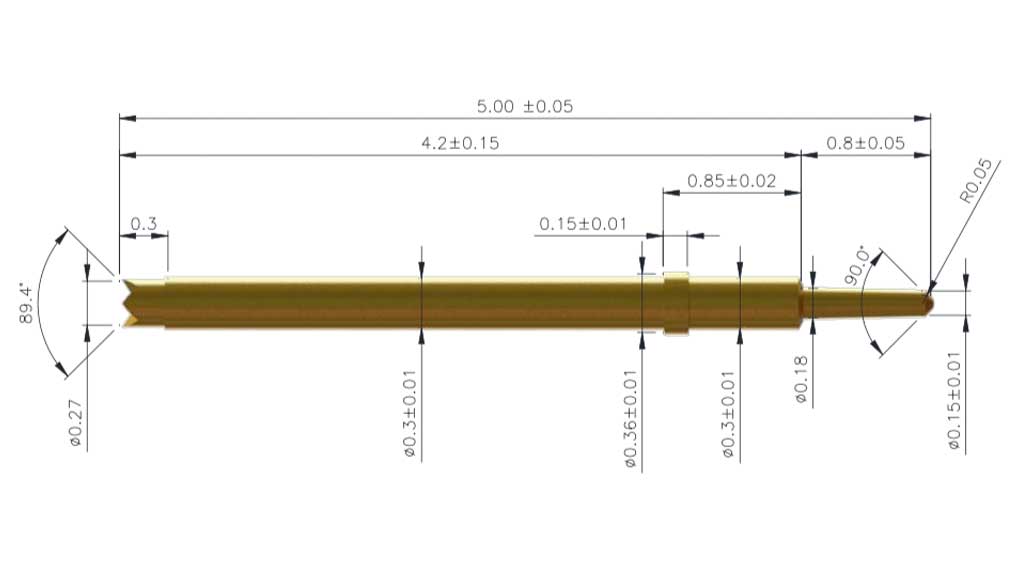

GS030L050MTRi

 Mechanical
Spring Force: 35.2gf±5.0gf @ 0.65mm
Recommended Travel: 0.65mm
Full Travel: 0.75mm

 Material
Top Plunger -BeCu (Au Plated) + G1 Coating
Bottom Plunger – BeCu (Au Plated)
Barrel – PBT (Au Plated)
Spring – SWP (Au Plated)

 Electrical Spec.
Resistance: Max 100mΩ
Current Rating: 3.0A
