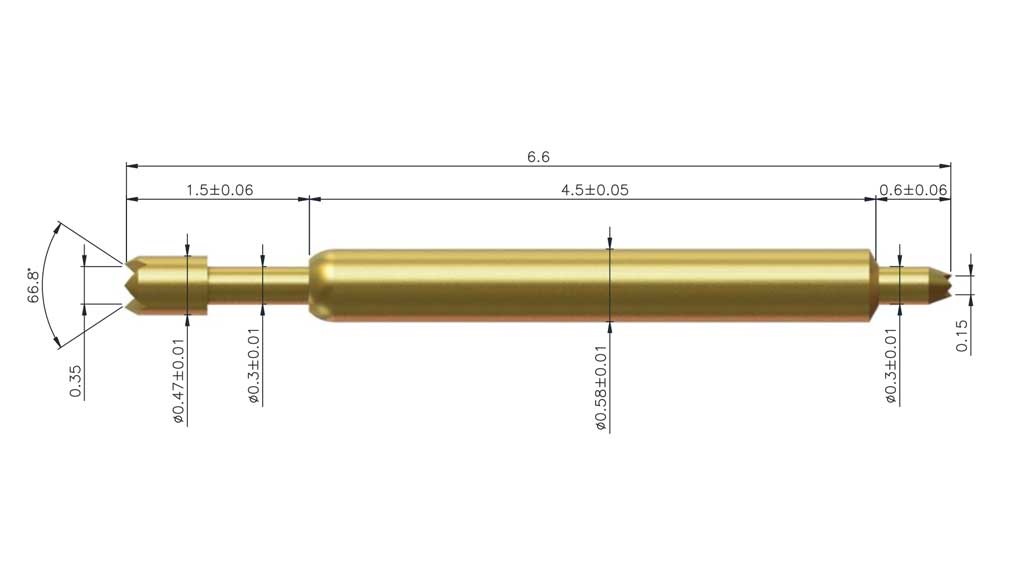

双头双动探针 / Double Pin

GD058L066AMAMi

 Mechanical
Spring Force: 30.2gf±20% @0.65mm
Recommended Travel: 0.65mm
Full Travel: 0.95mm

 Material
Top Plunger – BeCu (Au Plated) + G1 Coating
Bottom Plunger – BeCu (Au Plated)
Barrel – Brass (Au Plated)
Spring – SWP (Au Plated)

 Electrical Spec.
Resistance: Max 100mΩ
Current Rating: 3.5A
